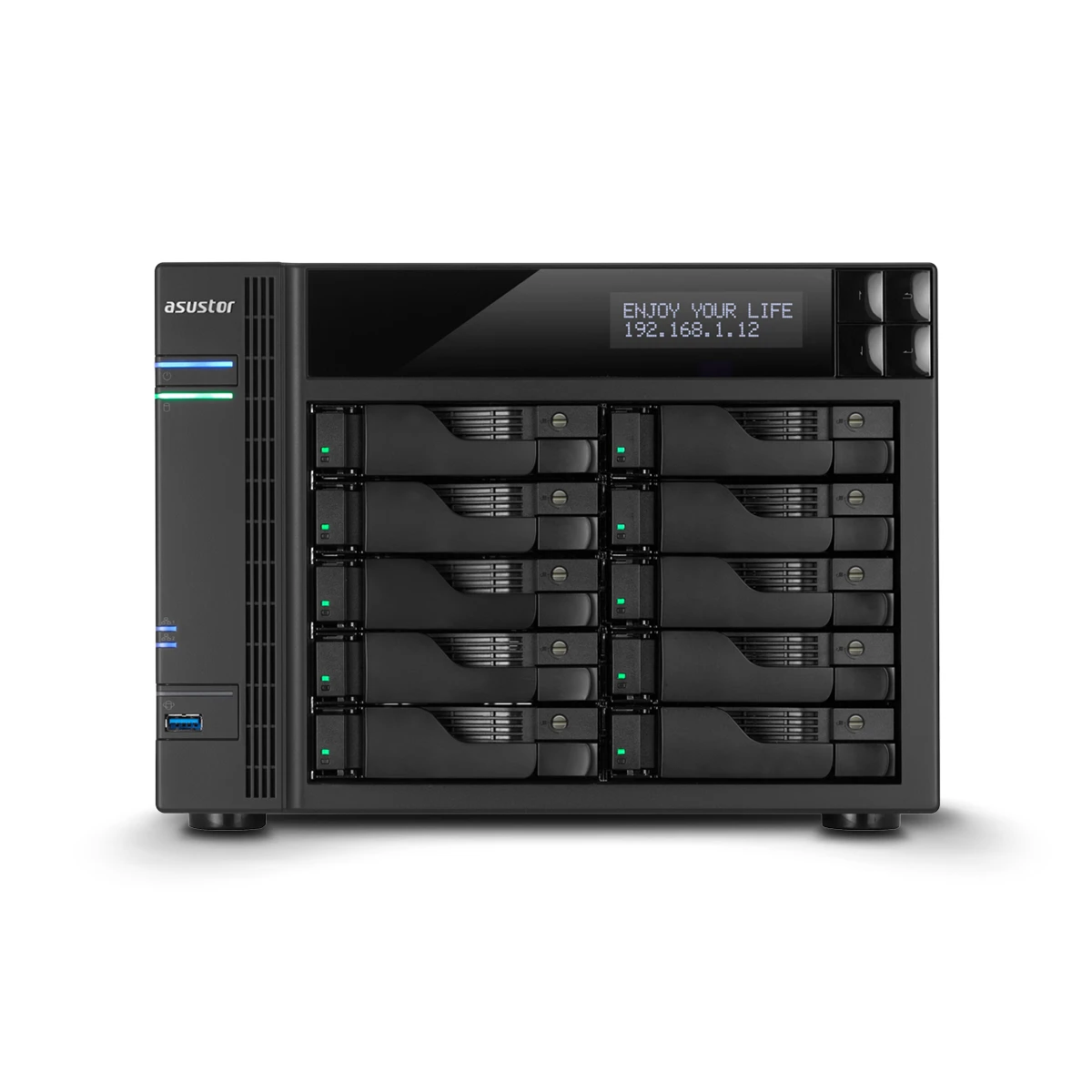

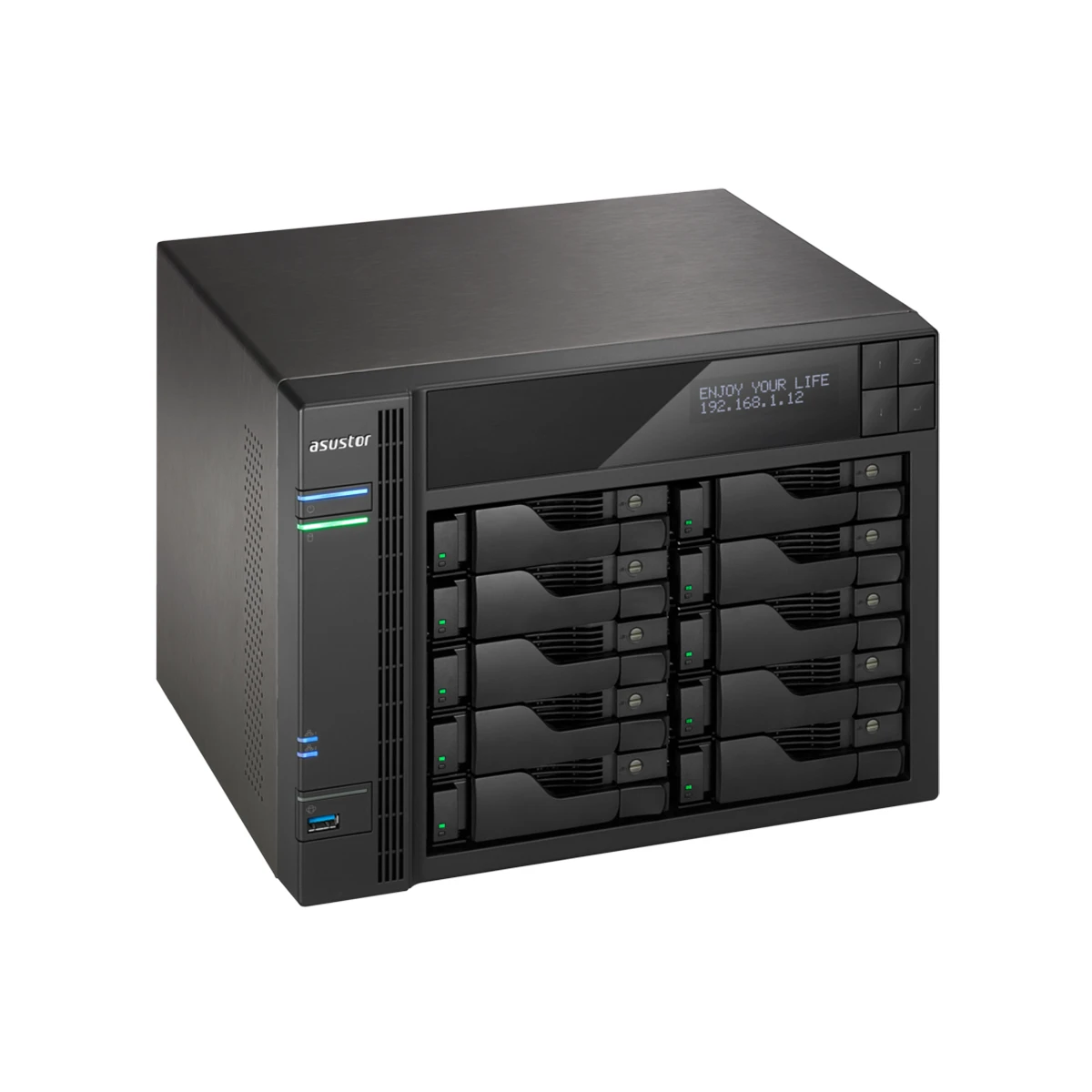

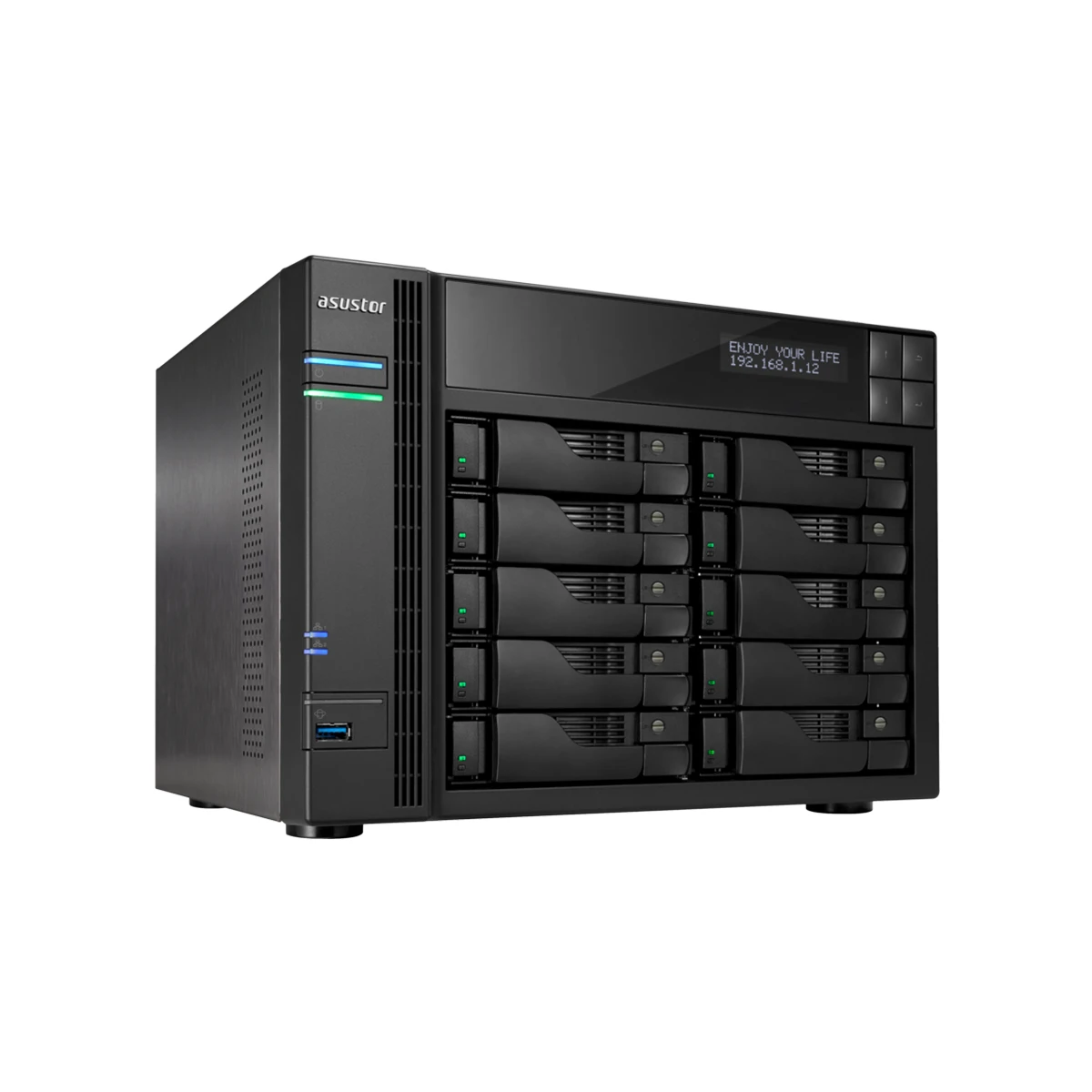

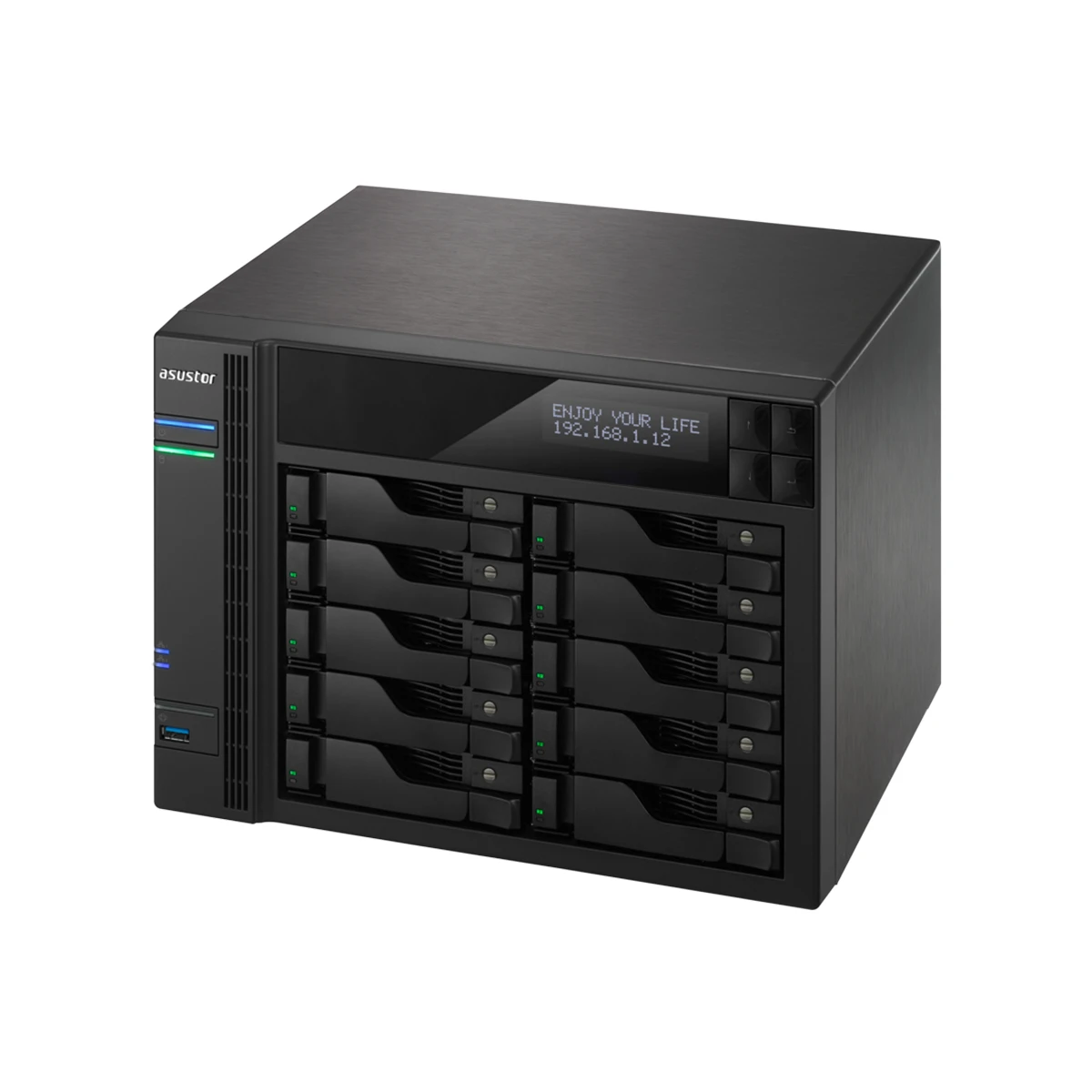

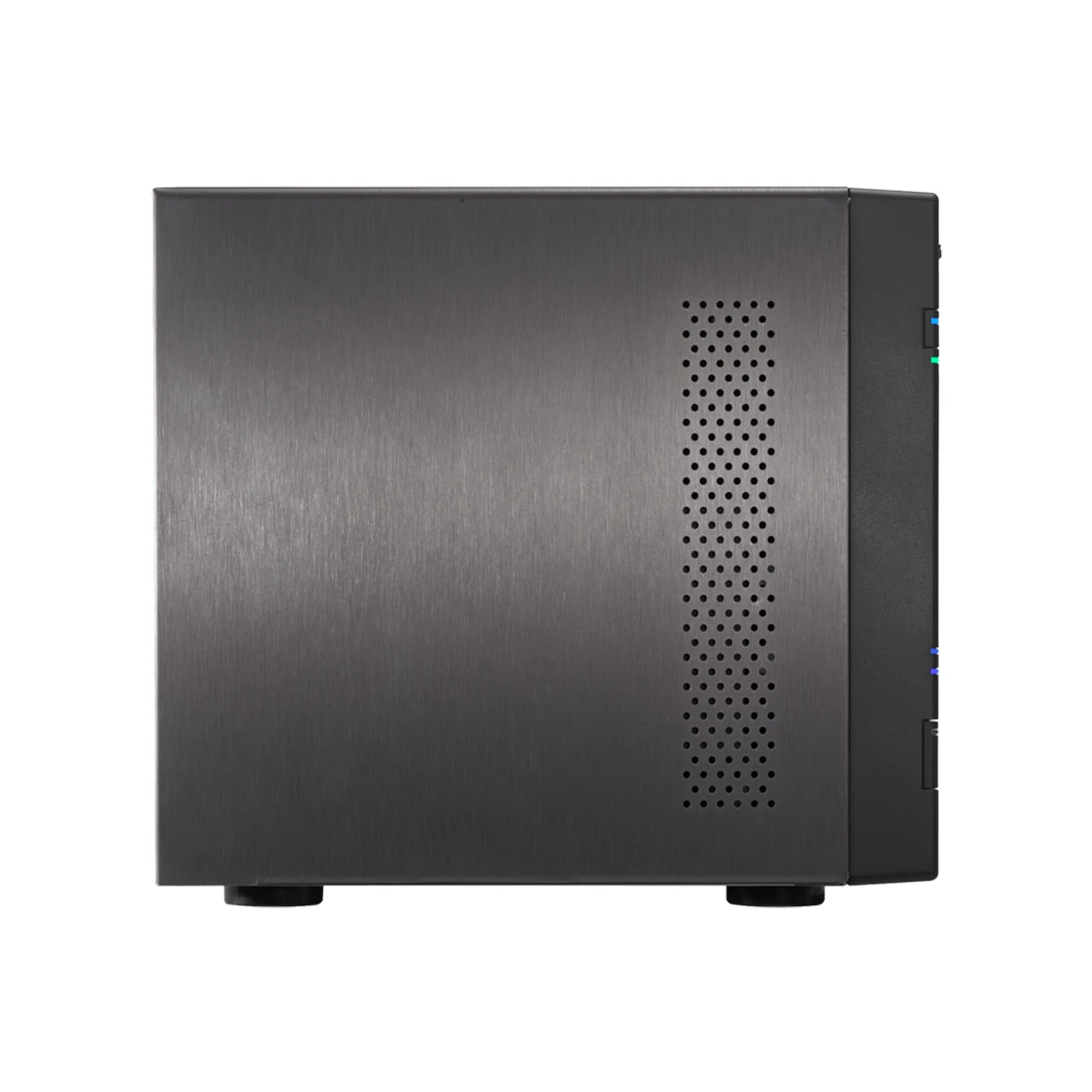

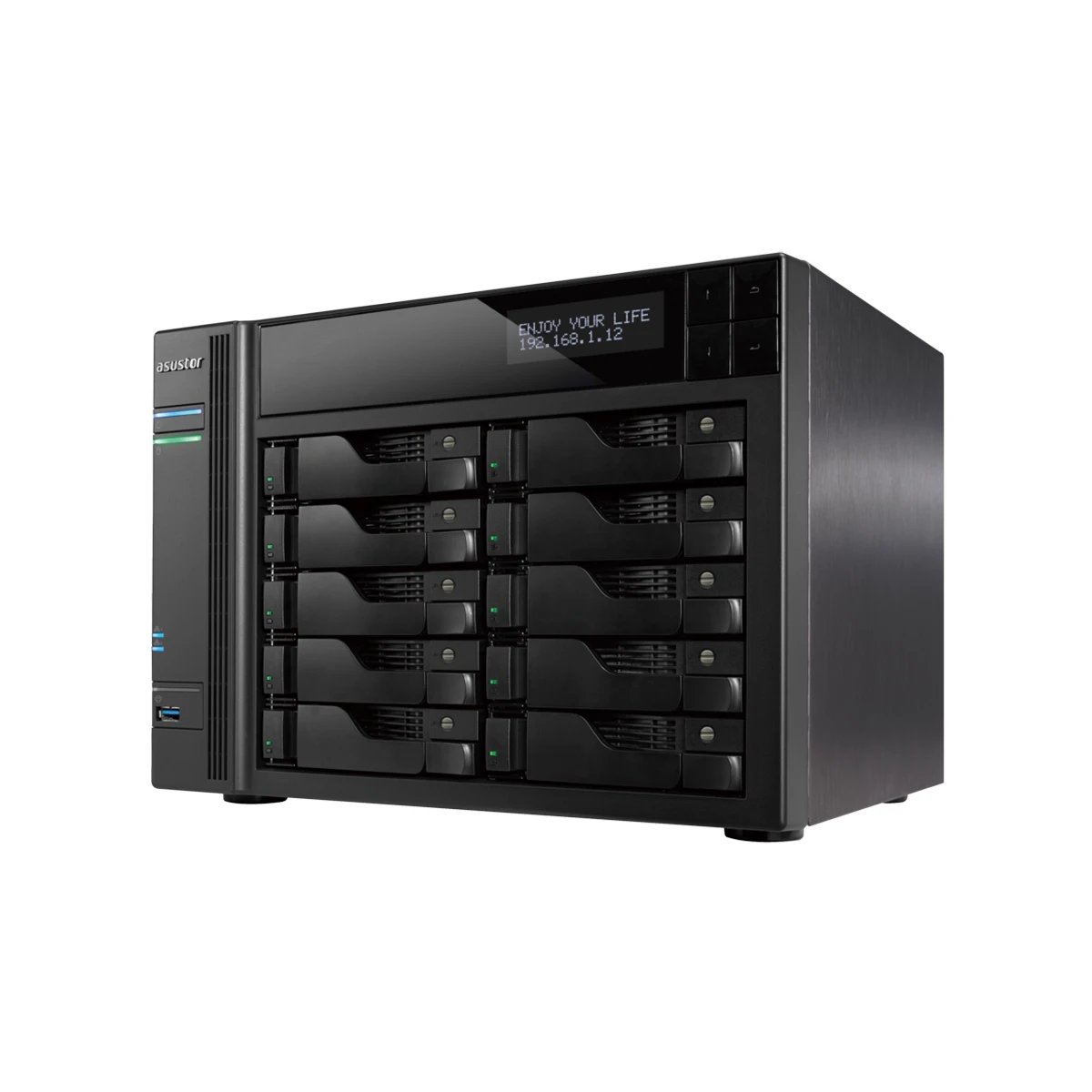

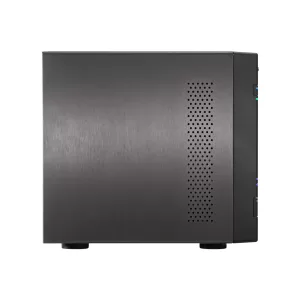

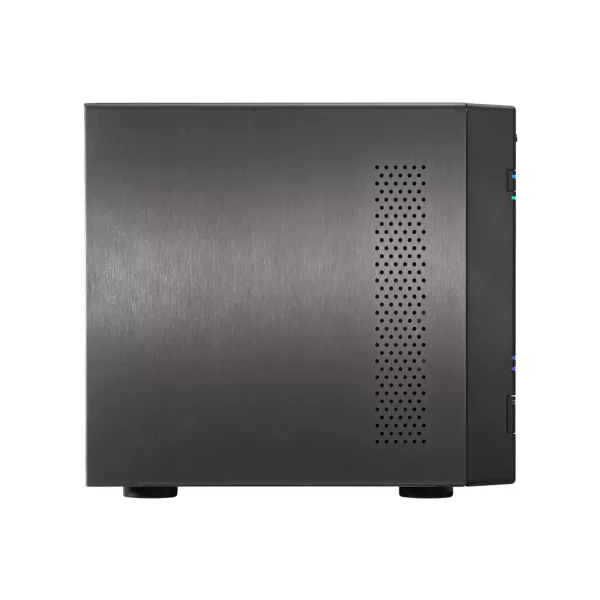

Asustor AS7010T

A 10-Bay Premium NAS Server Designed for Demanding Enterprise and Multimedia Applications

  • 10 Bay NAS
  • Intel ® Core i3 3.5GHz Dual-Core Processor
  • 2GB DDR3 (Expandable up to 16GB) ​
  • ADM 4.1 Onwards
  • 10 x SATA3 6Gb/s, 5″/2.5″ HDD/SSD
  • Maximum Drive Bays with Expansion Unit: 22
  • RAID Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • 2 x Gigabit Ethernet (1G/100M)
  • 3 x USB 3.0, 2 x USB 2.0, 2 x eSATA, 1 x HDMI
  • User Quota
  • AES 256-Bit Encryption
  • Maximum Number of Users: 16384
  • Maximum Number of Concurrent Connections: 2048
  • Supports Windows Active Directory
  • Up to 64 channels in 720p on single live view display
  • Maximum IP Cam 64 (4 Free Camera Licenses; Additional Licenses to be Purchased)
  • Find More about AS7010T

Ask for Price

Categories: ,


Advanced File Permissions Management – Windows ACL

For IT professionals, file permissions configuration is a very important topic, especially in enterprise environments. Because the native Linux system file permission mechanisms are different than those in Windows, in the past, IT professionals had to create a separate set of permissions for files stored on NAS servers. This also limited the number of permission configuration options that were available to them.

A Surge in Data Transfer Performance

ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%*. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.

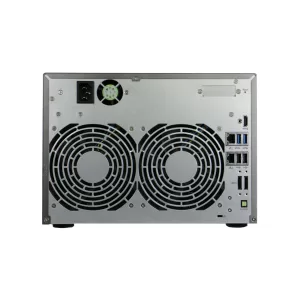

Optimized Cooling Design.

ASUSTOR’s 70 Series devices utilize fans with wide speed ranges combined with a smart speed control mechanism that allows the CPU to maintain a controlled operating temperature even under high loads. Under most circumstances the fans will operate at a low speed, conserving energy. When the system load and temperature increases, the fans will automatically increase their speed to cool the CPU without it having to lower its frequency. This allows the NAS to maintain stability and high performance even under high loads.

Create the Ultimate Home Multimedia Center

Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. The built-in HDMI interface and variety of multimedia Apps let you to enjoy all of your favorite multimedia from your NAS by directly connecting it to an LCD/LED TV or amplifier.

ASUSTOR NAS supports Full HD (1080p) output, allowing you to savor your movies, TV shows, music and photos in high definition. What’s more, through ASUSTOR’s App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Create a Stable, Reliable and High Quality Surveillance System

The powerful 70 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system.

Hardware Specifications

CPU Model
  • AS7010T-i3: Intel® Core
CPU Architecture x64 64-bit
CPU Frequency Dual-Core/Quad-Core

  • AS7010T-i3: 3.5GHz Dual-Core
  • AS7010T-i5: 3.0GHz Quad-Core
AES-NI hardware encryption engine integrated
  • AS7010T-i3: 2GB SO-DIMM DDR3
  • AS7010T-i5: 8GB SO-DIMM DDR3


Memory Module Pre-installed
  • AS7010T-i3: 2GB (1x 2GB)
  • AS7010T-i5: 8GB (1x 8GB)
Total Memory Slots 2
Memory Expandable up to 16GB (2x 8GB)

  • Support mixed capacity

Installation Guide ,

Flash Memory 1GB DOM
Drive Bays 10
Compatible Drive Type Compatibility
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit 22
Supports Hot Swappable Drives
Expansion USB 3.0 x 3, USB2.0 x 2, eSATA x 2
Network 2x Gigabit Ethernet
PCIe Expansion Slots for optional 10GbE card
Multimedia Output 1x HDMI 1.4a

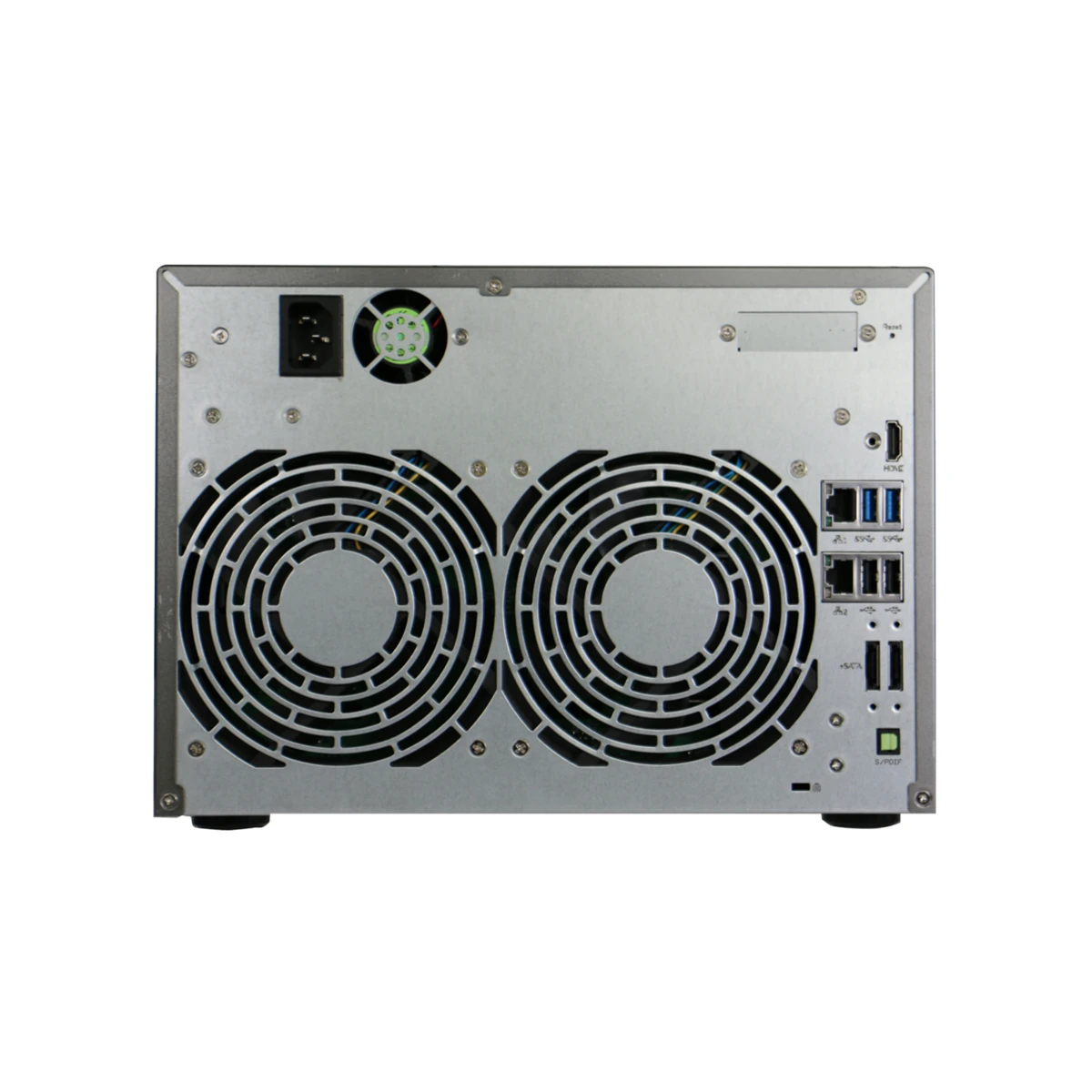

System Fan 2x 120mm
LCD Panel
Infrared Receiver
Power Supply Unit / Adapter 350W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK
Warranty 3 Years
Power Consumption 99.2W (Operation)
54.4W (Disk Hibernation)
1.97W (Sleep Mode)
Noise Level 22dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH
Size 215.5(H) x 293(W) x 230(D) mm
Weight 7.4 kg / 16.3 lb Package Contents
