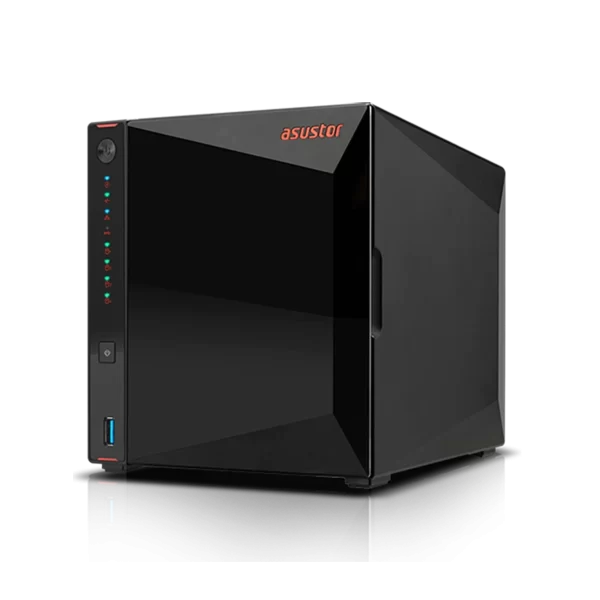

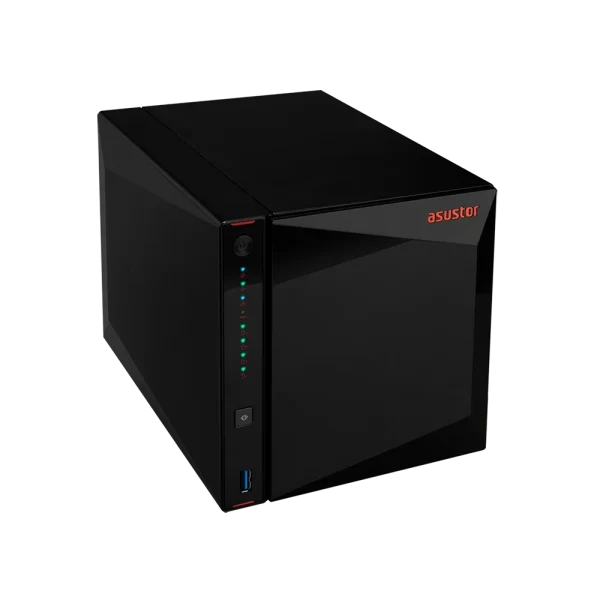

ASUSTOR AS5304T

0 out of 5
( There are no reviews yet. )

The #1 cloud storage device for live stream collection and content creators

  • 4 Bay NAS
  • Intel J4105 1.5GHz Quad-Core (burst up to 2.5GHz) Processor
  • 4GB DDR4 (Expandable up to 8GB) ​
  • ADM 4.1 Onwards
  • 4 x SATA3 6Gb/s, 5″/2.5″ HDD/SSD
  • Maximum Drive Bays with Expansion Unit: 16
  • RAID Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
  • 3 x USB 3.2 Gen 1, 1 x HDMI
  • User Quota
  • AES 256-Bit Encryption
  • Maximum Number of Users: 4096
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • Up to 36 channels in 720p on single live view display
  • Maximum IP Cam 36 (4 Free Camera Licenses; Additional Licenses to be Purchased)
  • Find More about AS5304T

Ask for Price

Categories: ,
Add to Wishlist

Description

AS5304T NAS Storage with Adobe Creative Cloud

ASUSTOR is an official Adobe Partner for video and audio solutions

1.5Ghz Quad-core boosts to 2.5Ghz

The AS5304T utilizes the Intel Gemini Lake Celeron J4105 Quad Core CPU and is 30% faster than Apollo lake. The Celeron J4105 also doubles the on-chip cache to 4MB, making the AS5304T one of our fastest NAS devices ever.

Upgradeable 4GB DDR4-2400 RAM

The AS5304T comes with four Gigabytes of DDR4 RAM and can be upgraded up to 8GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.

150% Faster with 2.5-Gigabit Ethernet

The AS5304T provides two 2.5-Gigabit Ethernet ports. Enable up to 150% faster performance than Gigabit Ethernet with compatible hardware and up to 5 Gbps using Link Aggregation.*

Hardware Specifications
CPU Model Intel Celeron
CPU Architecture x64 64-bit
CPU Frequency Quad-Core
AES-NI hardware encryption engine integrated
Memory 4GB SO-DIMM DDR4 Compatibility
Memory Module Pre-installed 4GB (1x 4GB)
Total Memory Slots 2
Memory Expandable up to 8GB (2x 4GB)

  • Support mixed capacity
Flash Memory 4GB eMMC
Drive Bays 4
Compatible Drive Type Compatibility
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit 16
Supports Hot Swappable Drives

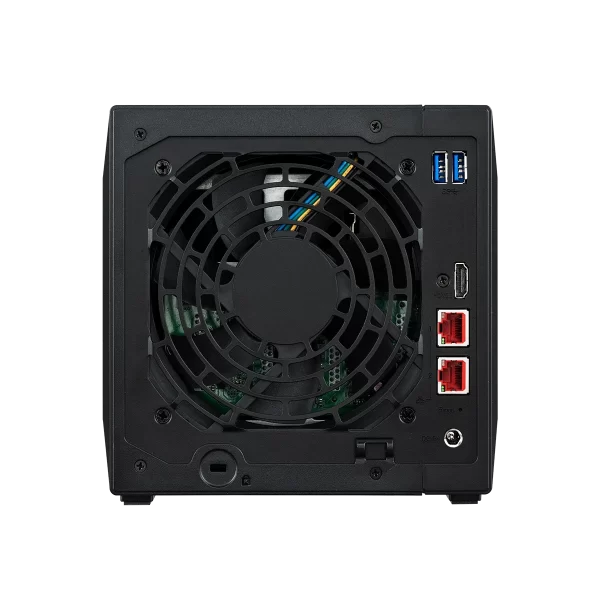

Expansion 3x USB 3.2 Gen 1
Network 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output 1x HDMI 2.0a
System Fan 1x 120mm
Infrared Receiver
Power Supply Unit / Adapter 90W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK
Warranty 3 Years
Power Consumption 27 W (Operation);
12.6 W (Disk Hibernation);
1.4 W (Sleep Mode)
Noise Level 19.7dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH
Size 170(H) x 174(W) x 230(D) mm
Weight 2.2 kg / 4.85 lbs Package Contents
