Asustor AS6504RD

For Small and Medium Businesses

  • 4 Bay NAS (Rack model)
  • Intel ATOM C3538 2.1GHz Quad-Core Processor
  • 8GB DDR4 (Expandable up to 128GB) ​
  • ADM 4.1 Onwards
  • 4 x SATA3 6Gb/s, 5″/2.5″ HDD/SSD
  • Maximum Drive Bays with Expansion Unit: 20
  • RAID Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • 2 x Gigabit Ethernet (1G/100M)
  • 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
  • 4 x USB 3.2 Gen 1
  • User Quota
  • AES 256-Bit Encryption
  • Maximum Number of Users: 4096
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • Up to 64 channels in 720p on single live view display
  • Maximum IP Cam 64 (4 Free Camera Licenses; Additional Licenses to be Purchased)
  • Find More about AS6504RD

Ask for Price

Categories: ,

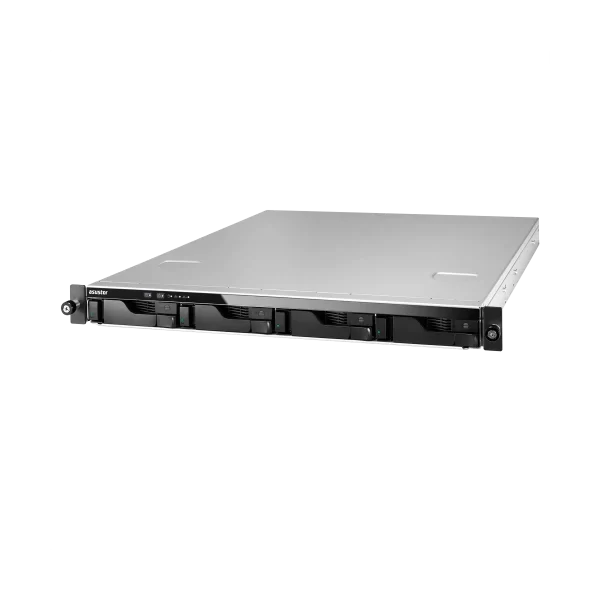

Cost-effective 2.5GbE 1U Asustor AS6504RD Rackmount Server

A thin 1U rack 2.5GbE server providing stable performance and four bays for expandable and easy SATA storage. The Lockerstor 4RS and 4RD bring expandability by bringing PCI Express capabilities, creating one of the most flexible and lightweight solutions for small businesses.

Asustor AS6504RD; Enterprise Grade Quad-Core Intel Atom CPU and DDR4 RAM

Equipped with the new Quad-Core Intel Atom C3538 that is clocked at 2.1GHz and combined with more than 8GB of DDR4 RAM makes for an ultra-fast, ultra-smooth file sharing experience for your office.

Asustor AS6504RD; Enterprise Backup

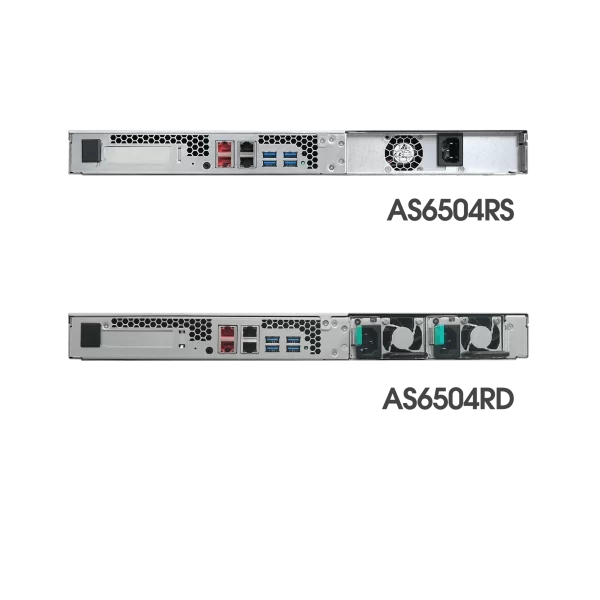

The Lockerstor RD has complete backup and safety mechanisms by including dual backup power supplies for safety while including four Ethernet ports for additional performance and redundancy.

Asustor AS6504RD; Agile Expandability

The ASUSTOR Lockerstor 4RD rackmount series prepares you for the needs of tomorrow. PCIe expansion enables 10-Gigabit Ethernet can be installed to increase performance and expandability

Hardware Specifications

CPU Model Intel ATOM C3538
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.1GHz
Memory 8GB SO-DIMM DDR4 Compatibility
Memory Module Pre-installed 8GB (1x 8GB)
Total Memory Slots 4
Memory Expandable up to 128GB (4x 32GB) Installation Guide

  • Support mixed capacity
Flash Memory 8GB eMMC
Drive Bays 4
Compatible Drive Type Compatibility
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit 20
Supports Hot Swappable Drives
Expansion 4x USB 3.2 Gen 1
Network 2x Gigabit Ethernet (1G/100M) ; 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots PCIe 3.0 x8 slot (black, x4 link)
Multimedia Output N/A
System Fan 2x 40mm
Power Supply Unit / Adapter AS6504RS: 250W x1
AS6504RD: 250W x2
AS6504RS x1 / AS6504RD x2
Input Power Voltage 100V to 240V AC
Redundant power supply
Service LED Indicator
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
Warranty 3 Years
Power Consumption AS6504RS: 47.7W (Operation) 28.4W (Disk Hibernation);
AS6504RD: 65W (Operation) 42.4W (Disk Hibernation);
Noise Level
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH
Size 44(H) x 439(W) x 515(D) mm
Weight AS6504RS: 7.85kg / 17.27 lbs;
AS6504RD: 9.3 kg / 20.46 lbs
