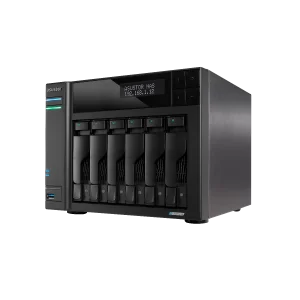

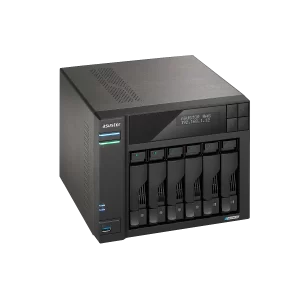

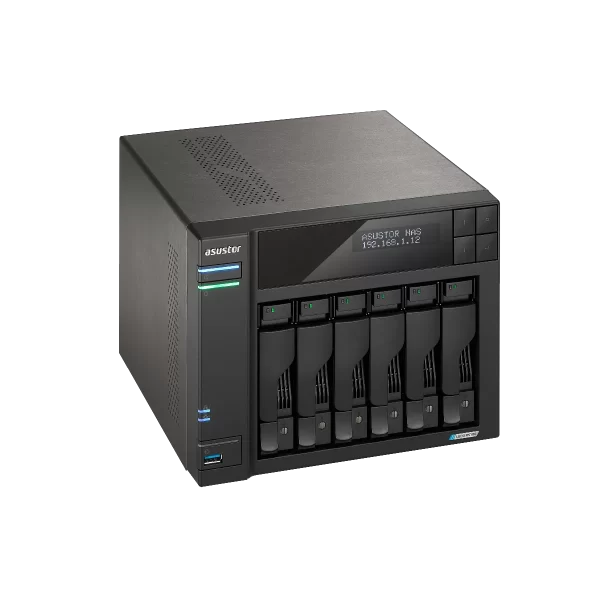

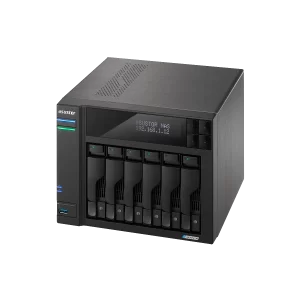

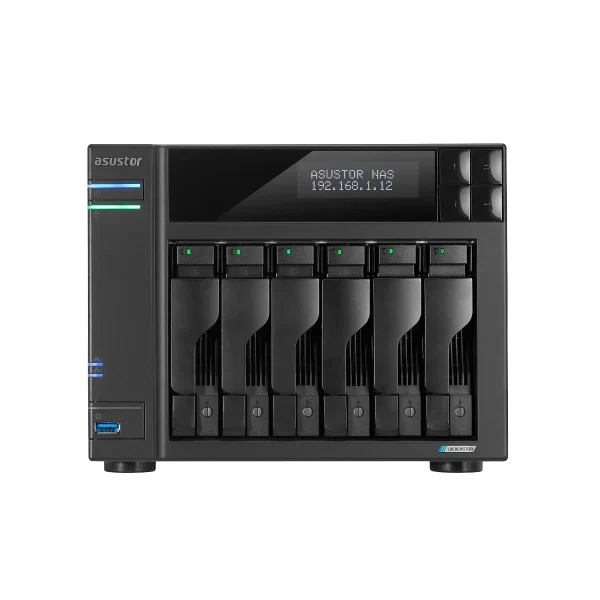

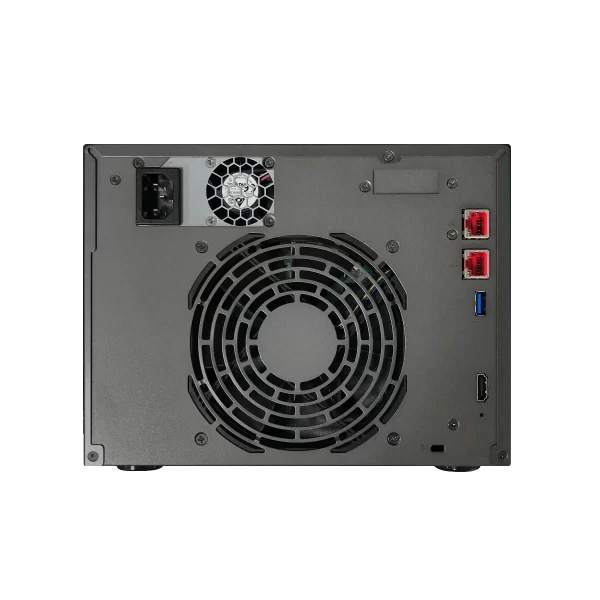

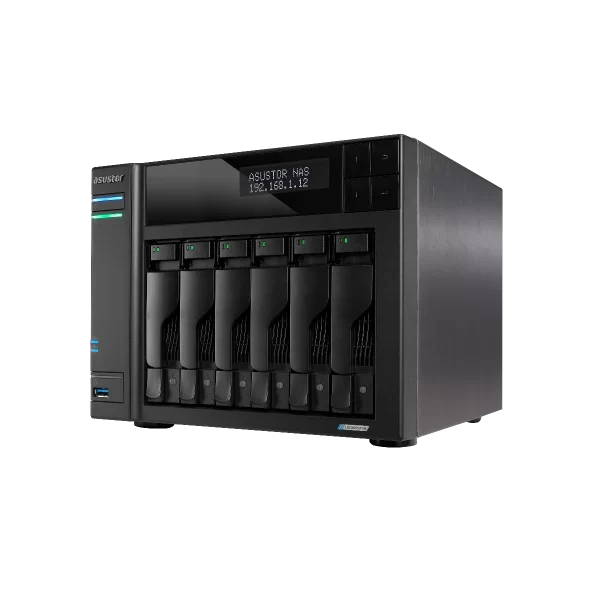

Asustor AS6706T
The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
- 6 Bay NAS
- Intel N5105 2.0GHz Quad-Core (burst up to 2.90GHz) Processor
- 8GB DDR4 (Expandable up to 16GB) ​
- ADM 4.1 Onwards
- 6 x SATA3 6Gb/s, 5″/2.5″ HDD/SSD
- 4 x M.2 Drive Slots
- Maximum Drive Bays with Expansion Unit: 14
- RAID Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
- 2 x USB 3.2 Gen 2 (10Gbps), 1 x HDMI
- User Quota
- AES 256-Bit Encryption
- Maximum Number of Users: 4096
- Maximum Number of Concurrent Connections: 512
- Supports Windows Active Directory
- 2.5 GbE Supports Wake-on-LAN (WOL)
- 5 GbE Supports Wake-on-WAN (WOW)
- Up to 44 channels in 720p on single live view display
- Maximum IP Cam 44 (4 Free Camera Licenses; Additional Licenses to be Purchased)
- Find More about S6706T
- Description
- Technical Specifications
- Reviews (0)
Description
Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
All New Hardware
ASUSTOR Ultimate 6 bays hybrid storage. Giant space and elastic high speed with M.2 or 10G card.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
Hardware Specifications |
||
|---|---|---|
| CPU Model | Intel Celeron N5105 | |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.0GHz (burst up 2.90 GHz) | |
| Memory | 8GB SO-DIMM DDR4Â Compatibility | |
| Memory Module Pre-installed | 8GB (1x 8GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 16GB (2x 8GB)Â Installation Guide
|
|
| Flash Memory | 8GB eMMC | |
| Drive Bays | 6 | |
| M.2 Drive Slots | 4Â Installation Guide | |
| Compatible Drive Type Compatibility |
|
|
| Maximum Drive Bays with Expansion Unit | 14 | |
| Supports Hot Swappable Drives | ||
| Expansion | 2x USB 3.2 Gen 2 (10Gbps) | |
| Network | 2x 2.5 Gigabit Ethernet (2.5G/1G/100M) | |
| PCIe Expansion Slots | 1x for optional expansion 10 GbE card Installation Guide | |
| Multimedia Output | 1x HDMI 2.0b | |
| System Fan | 1x 120mm | |
| LCD Panel | ||
| Infrared Receiver | ||
| Power Supply Unit / Adapter | 250W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
| Power Consumption | 48.5 W (Operation); 27.7 W (Disk Hibernation); 0.81 W (Sleep Mode) |
|
| Noise Level | 18.1dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Humidity | 5% to 95% RH | |
| Size | 185.5 (H) x 233 (W) x 230 (D) mm | |
| Weight | 4.4 kg / 9.7 lb Package Contents | |
